- - Elite Performance for Serious Adventurers
- - 200+ km Per Charge
- - Built On Shimano E-Bike System
- - Designed & Engineered In Vancouver 🇨🇦
Elite Power For Boundless Adventures

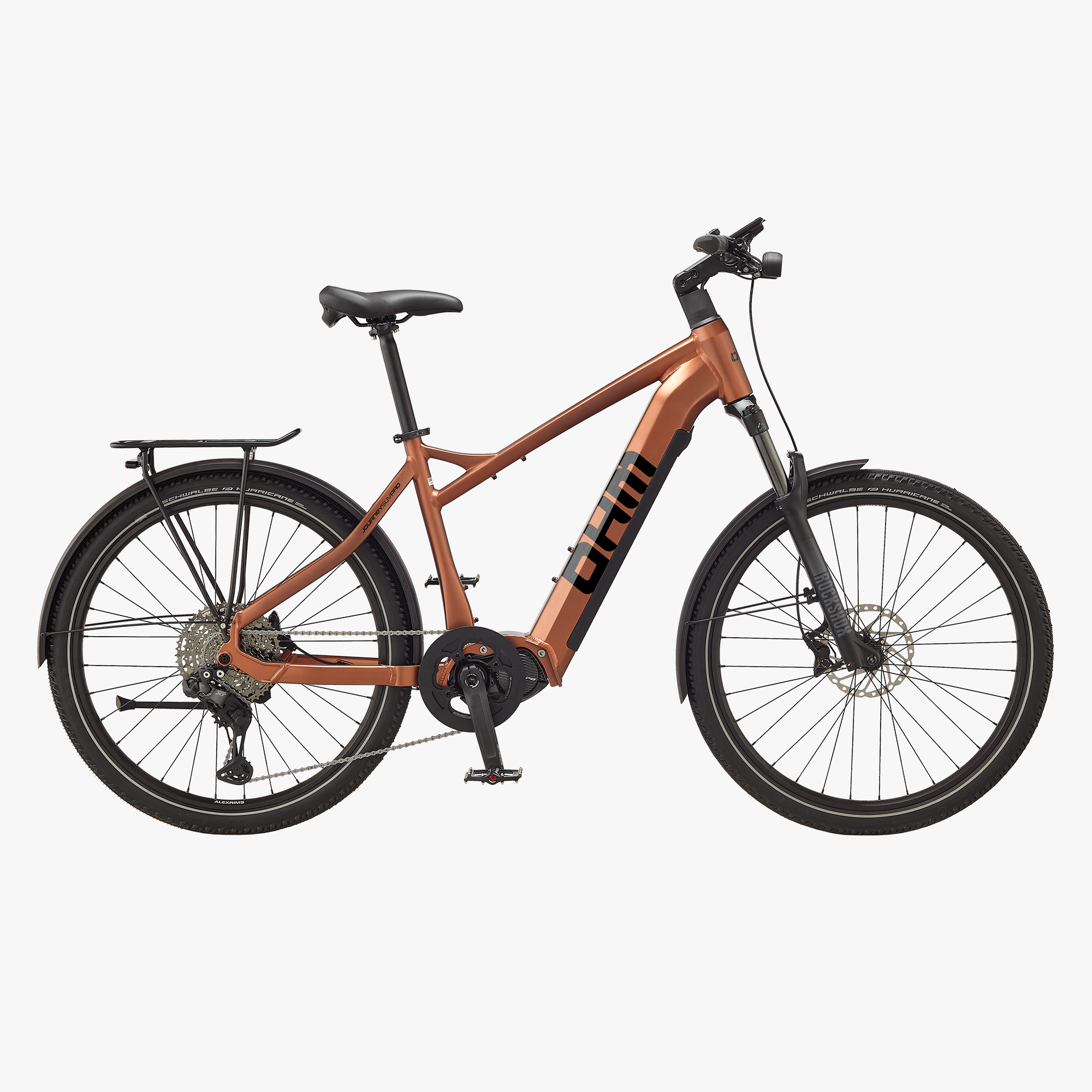

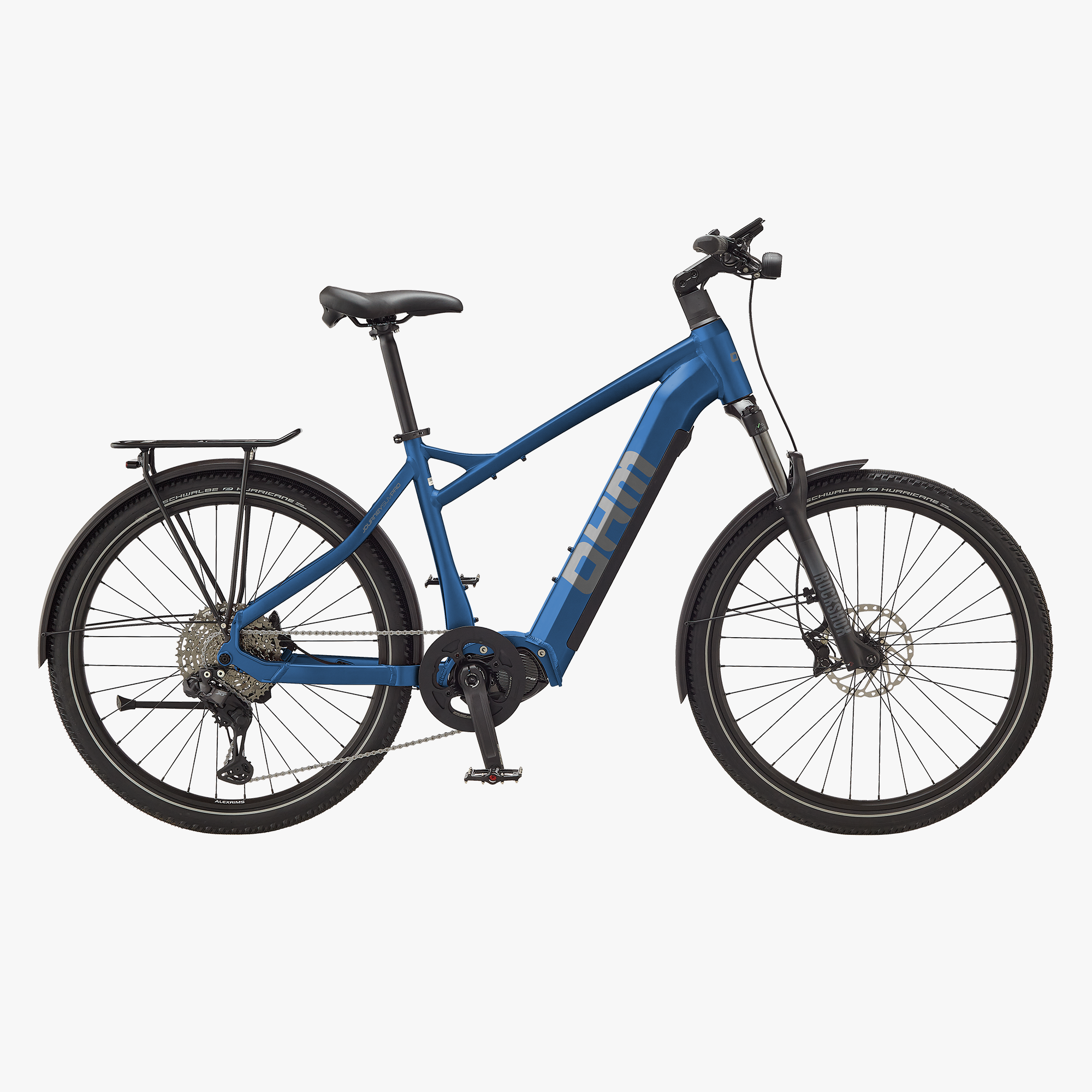

Conquer any terrain with the flagship OHM Journey PRO EP8 Di2. Premium e-bike featuring electronic shifting, maximum power, and exceptional range for the most demanding adventures.
Step-Over for a sporty feel or Step-Thru for easy mounting.
Crafted in North Vancouver, these e-bikes are designed to excel in the local environment, ensuring peak performance wherever you go.
Backed by our industry-leading 10-year frame warranty, you can ride with confidence, knowing your investment is protected for the long haul.
General
Bike CategoryCommuter (E-Bike)
GenderUnisex
CertificationsUL Certified long-range 531Wh or 708Wh
battery
Weight58 lbs (26.3 kg)
LightsSupernova M99 Mini Pure, M99 TL2
Frameset
Frame6061 Aluminium, Comfort Geometry, Boost 148, Fully Integrated Battery, Integrated Carrier, Internal Cable Routing, Tapered Headtube
ForkROCKSHOX FS-RECON SILVER-RL-D1, Air, 15x100mm, 120mm
Front Set
HeadsetACRO S AZF-789 ICR (Internal Cable Routing)
StemSATORI Shorty, 45mm, Adjustable 0- +90
SuspensionSuspension: Rockshox Recon 29-Boost
120mm/100mm
HandlebarMJ 31.8mm, Rise: 25mm, Backsweep: 7°
Tape GripsVELO Comfort Ergo, Lock on
E-Bike Specifications
Drive SystemDrive unit: SHIMANO DU-EP801, 600W, 85Nm;
Remote: SHIMANO SC-EN610, 2.8” color LCD, SW-EN600-L
w/Bluetooth
DisplaySC-EN600 with Bluetooth
Charger TypeDARFON Smart Plus Charger, 42V4A
Battery Type/WeightDARFO N 708Wh, Aluminium casing, w/Shimano Service
Drivetrain
Rear DerailleurSHIMANO RD-U8050, CUES, SGS 11-Speed, Shadow Design, Di2
CassetteSHIMANO CS-LG400-11, CUES, 11-Speed, 11-50T
CranksetFSA CK-752 Forged AL6061 spider, 44T w/chainguard
ChainKMC eGLIDE EPT, w/Quicklink
Shift LeversSHIMANO SW-EN605-R
PedalsWELLGO, Aluminium body, Cr-Mo axle, sealed cartridge
Brakes
BrakesetBrakes: SHIMANO BL-MT420, Quad piston, Hydraulic Disc
Saddle
SaddleVELO Comfort Ergo
Wheels
Rims/WheelsALEXRIMS MD35, 32H
Tires/TubesSCHW ALBE Hurricane, Performance, 57-584, 27.5 x 2.25, HS499 ADDIX 67EPI
Front HubSHIMANO HB-TC500-15-B
Rear/Free HubSHIMANO FH-TC500-HM-B

•Size GuideSmlMedLrg
Rider Height
5' - 5'6"5'5" - 5'11"
5'10 - 6'3"
BTop Tube595mm608mm635mm
CHead Tube Angle67.5°635mm67.5°
DSeat Tube Angle75.5°75.5°75.5°
EHead Tube150mm150mm150mm
FReach
403mm
416mm
443mm
GStack
656mm
656mm
656mm
HWheelbase
1195mm
1208mm
1235mm
IBB Drop
38mm
38mm
38mm
KStandover Height697mm
739mm
782mm
