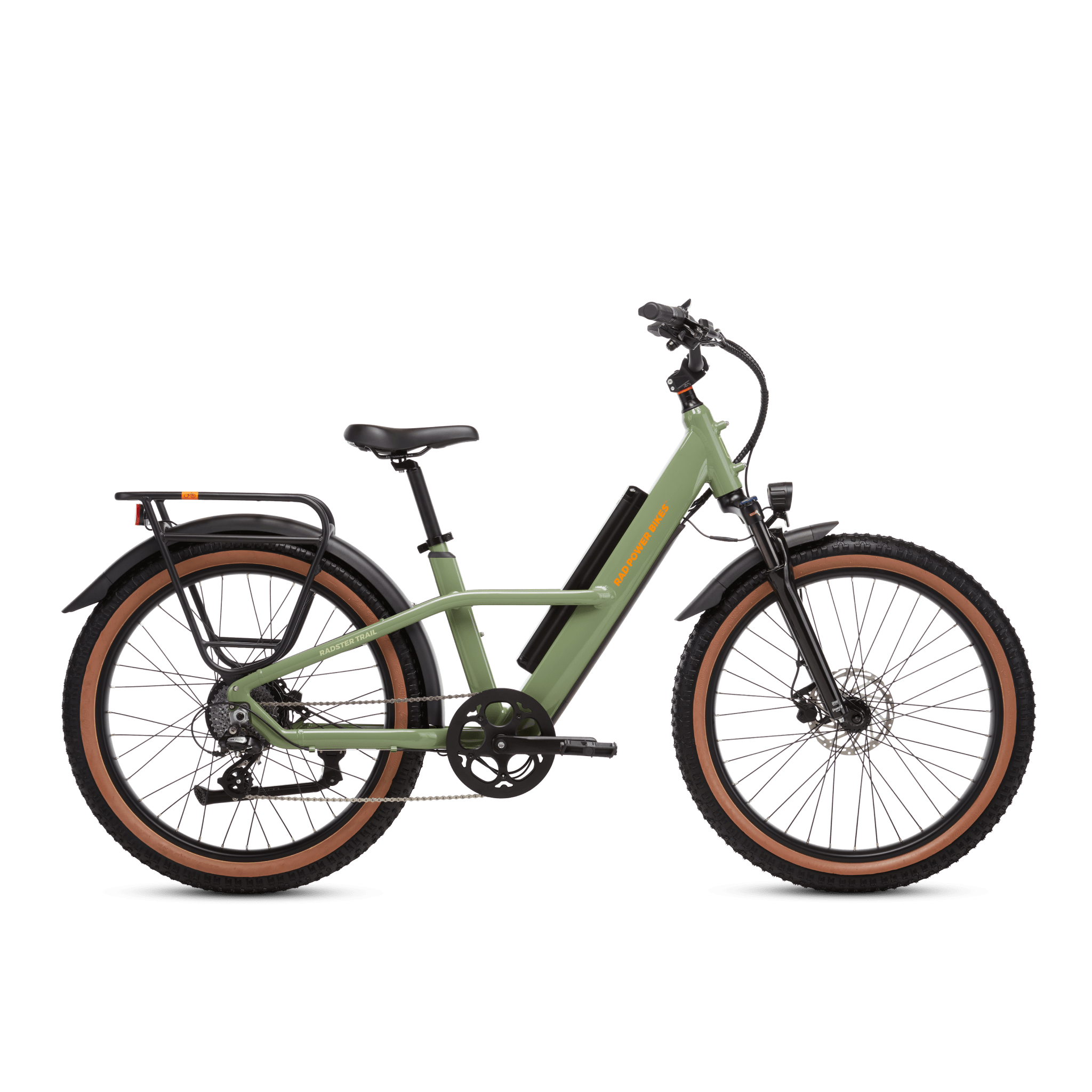

Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike
Radster™ Trail Electric Off-Road Bike

Radster™ Trail Electric Off-Road Bike

$1,999.00 USD
Color: Copper Red

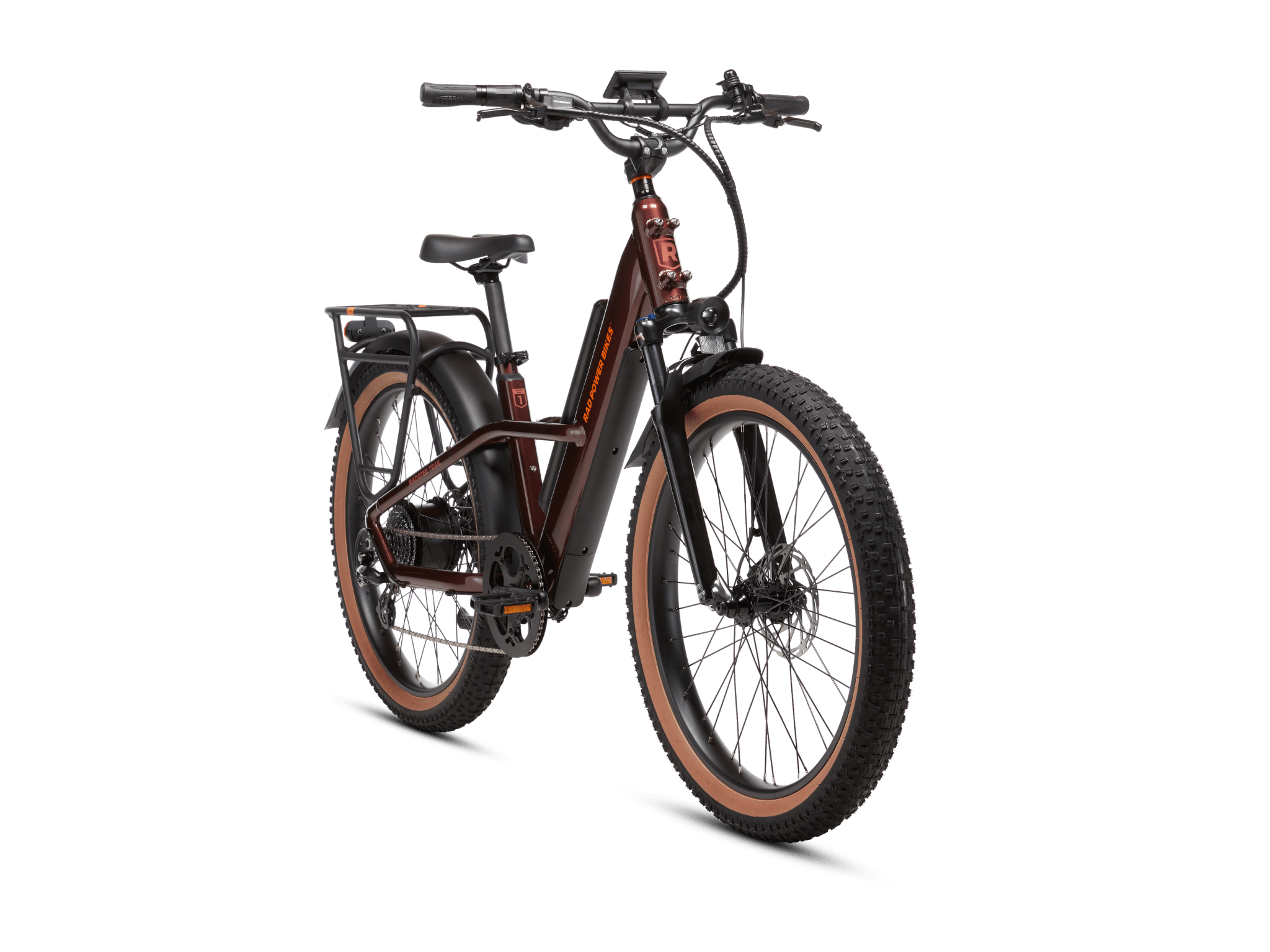

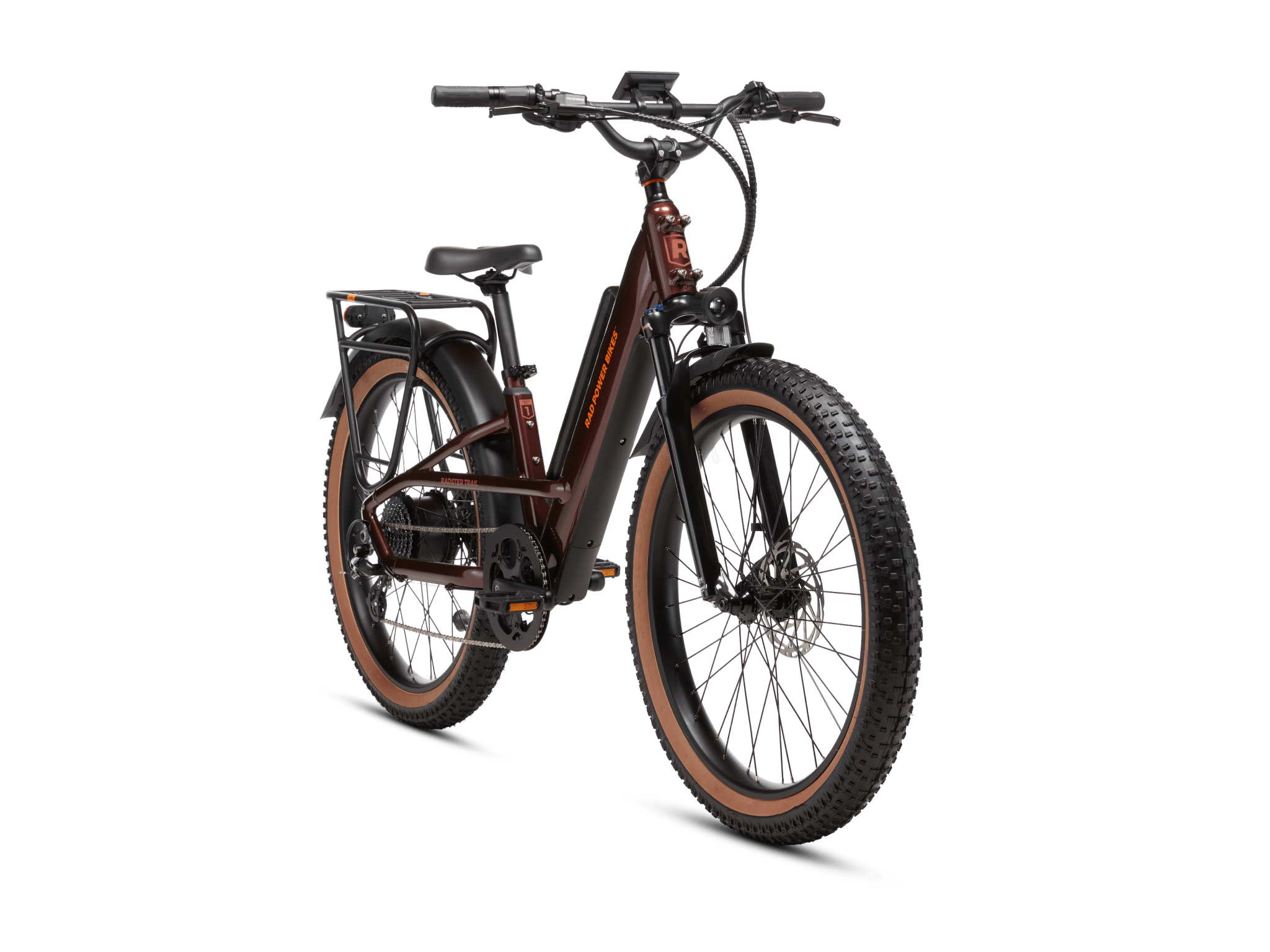

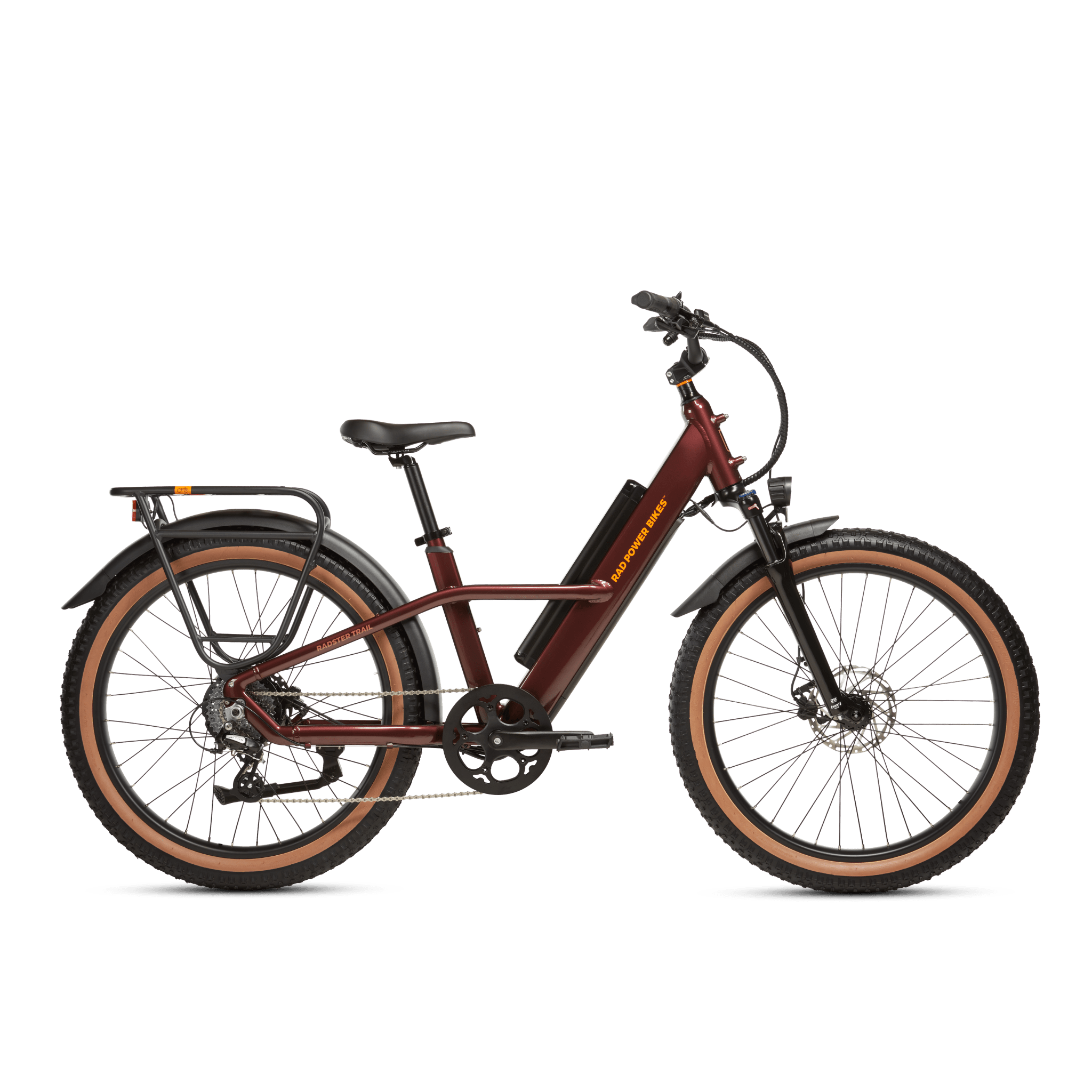

Copper Red

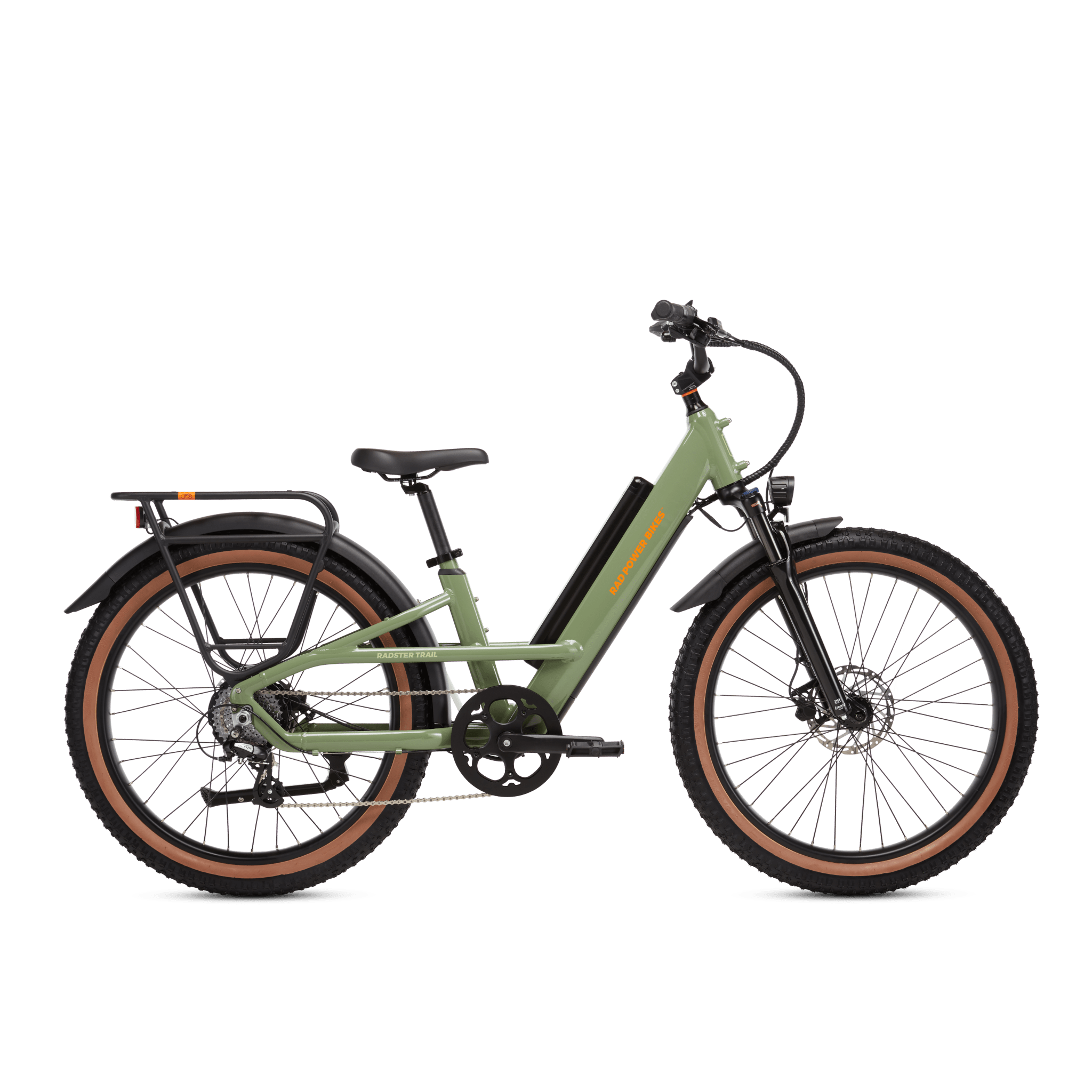

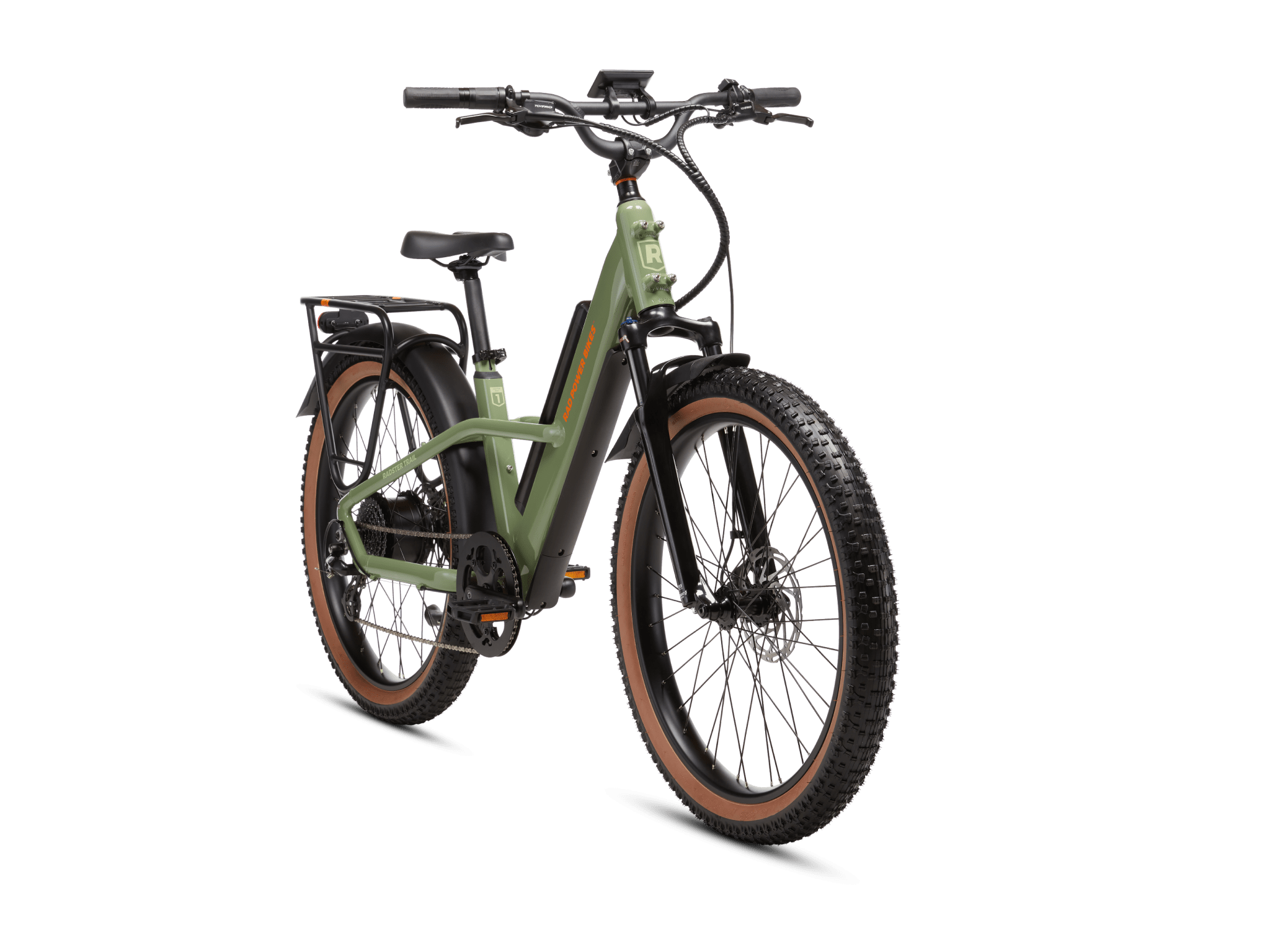

Fir Green
Frame Style: Regular
Regular
Large
Free delivery and assembly with velofix available in participating markets*
Learn More
🇺🇸 Available for purchase in US only.
🇨🇦 Based in Canada? Click here** and get $50 off using code: RPP-SHOPVELOFIX-CA


We’ve slimmed down Rad’s classic fat tires for a sportier off-road experience, and upped the torque for faster hill-climbing. Enjoy up to 65 miles of range per charge, class-3 capabilities, and controls that lock with a personalized passcode.

Range: Up to 65 miles

Payload: 370 lb. (290 lb. max rider)

Top speed:
Class 1 & 2: Up to 20 mph
Class 3 (limited): Up to 25 mph
Class 3: Up to 28 mph

Motor: 750W Geared Hub, 100 Nm torque

UL status: UL Certified to UL-2849 and UL-2271

Battery type: 15 Ah Safe Shield Semi-Integrated Battery

Radster, Radster Trail, Off-Road, Off Road, All-terrain, Trail, All terrain, RadRover, Rad Rover, mid-step, mid step, robver bike, rovor, river, red rover, hunting, hunter, hunt, snow, outdoor, offroad, lady, lady's, ladies, women's, woman's, radrhino, rad rhino, rad, rad rover 5, beast of a bike, electric off-road bike

General

GenderUnisex
Best Suited for Riders 4'11"-5'8" (150-173 cm) (Inseam - Reg: 25-33"; Large: 27-35")
Certifications UL Certified to UL 2849 and UL 2271
Weight77.5 lb (35.2 kg), 68.5 lb (31.1 kg) with battery removed
Max Rider Capacity290 lb
Payload Capacity370 lb, 290 lb. max rider
Rear Rack Capacity55 lb (25 kg)

Frameset

FrameAluminum
ForkHydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle

Front Set

HandlebarsAluminum, 710 mm wide
Tape GripsErgonomic comfort grips

E-Bike Specifications

RangeEstimated 25-65 miles per charge

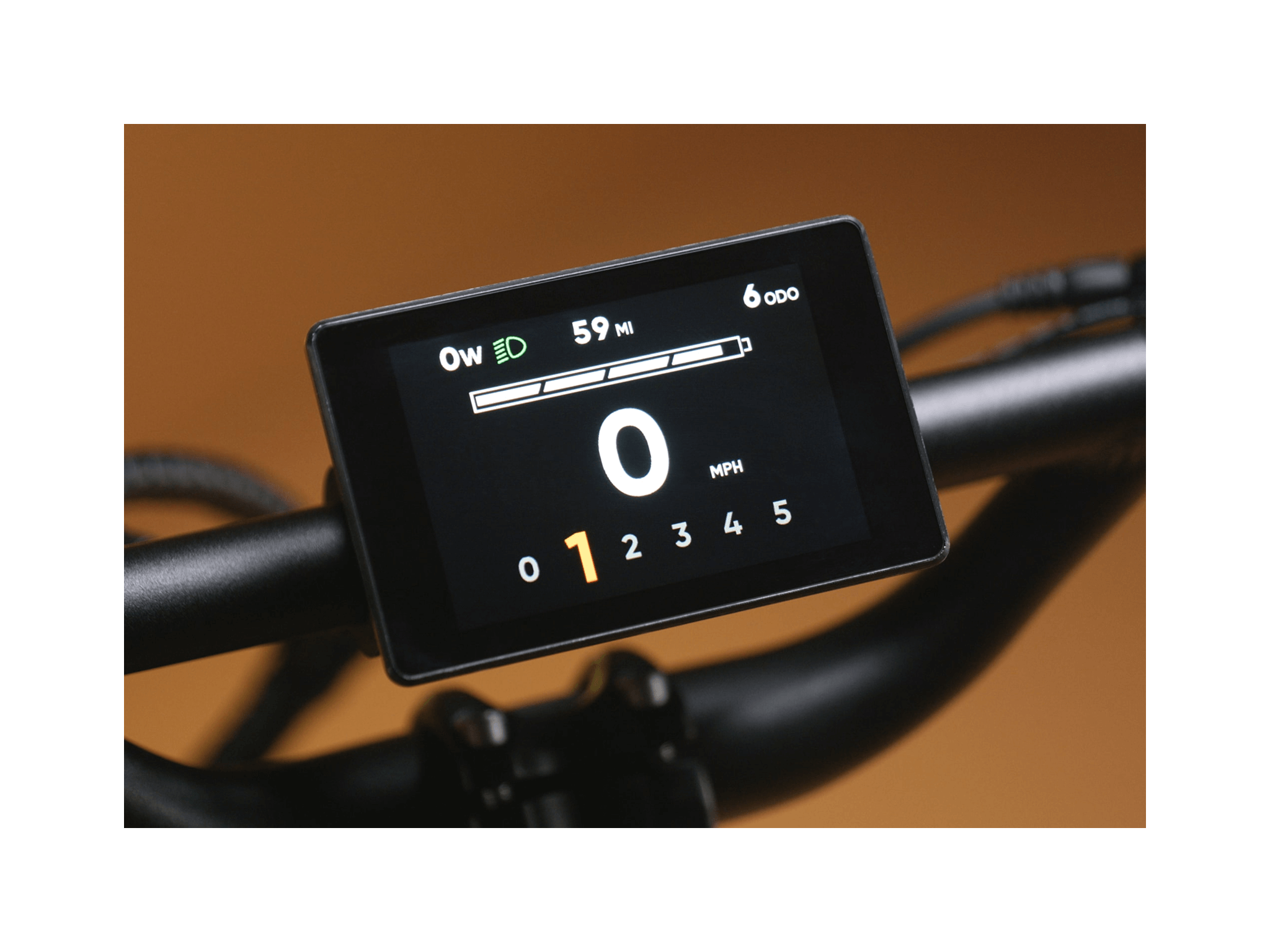

DisplayRad custom color display.
Charger Type48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Battery Type/Weight15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271

Drivetrain

DerailleurShimano 8-speed
Crankset50T with dual sided chain ring cover, 170mm crank arms
PedalsAlloy Platform, Boron axle with reflectors, standard 9/16" X 20 TPI threading

Brakes

BrakesetBrake system: Rad Power Bikes approved hydraulic disc brakes; Brake pads: Tektro semi-metallic P20.11; Brake rotors: 180mm x 1.8mm

Saddle & Seatpost

SaddlePadded sport saddle with shallow anatomic cut-out and contoured sides
SeatpostRegular: 350 mm x 31.6 mm Large: 400 mm x 31.6 mm Seatpost clamp: 38.1 mm

Wheels

Tires/TubesKenda Havok 27.5" X 3.0" with puncture protection and tan sidewall
Best Suited for: 4'11"-5'8" (150-173 cm) (Inseam - Reg: 25-33"; Large: 27-35")



Regular Bike inseam sizing chart (Inches)
23 - 25" 25 - 33" 33+"
  • You will not be able to ride the bike comfortably.
  • You will be able to pedal and stand over the frame comfortably.
  • Your legs may be too long to get full leg extension when pedaling.

Large Bike inseam sizing chart (Inches)
25-27" 27-35" 35+"
  • You will not be able to ride the bike comfortably.
  • You will be able to pedal and stand over the frame comfortably.
  • Your legs may be too long to get full leg extension when pedaling.

What to Measure

Your “bike inseam” — or inside leg length — is the distance between your body where it sits on your bike saddle and the ground.


It’s typically an inch or two longer than the length of your trousers, but measure to be sure.

You’ll use this number on the chart to get a feel for how the different models will fit you.

How to Measure

Gather the tools needed:

  • Medium-width hardcover book
  • Tape measure
  • A wall you can stand against
  • A trusted friend or relative

Wearing your regular riding shoes and with your back to the wall, stand with your feet spread so there is about 7 inches between them — this is about the distance apart your feet would be when straddling a bike with your feet on the ground (standover height).


Place a hardcover book against the wall with the spine of the book facing upward. Slide the book upwards towards your groin until it is solidly against your body. This may be a bit awkward, but is way more comfortable — and safer! — than trying to ride a bike that is too big.


If you have a buddy helping you, get them to measure from the floor to the top of the book spine while you hold the book in place. If you’re going it alone, carefully hold the book in place and measure from the ground to the top of the book spine.
